Alloy Steel Flanges Manufacturer in India
Vishal Tube is renowned Suppliers, Manufacturers Of Alloy Steel Threaded Flanges, Alloy Steel Socket Weld Flanges Price in India, Alloy Steel ANSI 150 Flanges Exporter in India.
What is Alloy Steel Flanges?
ASTM A182 Alloy Steel Flanges Price Per Ton In India
Vishal Tube is a Manufacturer of ASTM A182 Alloy Steel Flanges in Mumbai, India. We are leading Supplier & Exporter of ASME SA182 Alloy Steel Square Flange, primarily servicing the Fire Protection Industries, Petrochemical, Aerospace, Nuclear, Power Generation, oil and gas, medical equipment industries. We are globally Distributor of ASTM A182 Alloy Steel Rotable Flange in the world, and our experience has made us a leader in metal industry.
An ISO 9001:2008 Certified Company, We are here to provide our customers with the new way to take advantage of the highest quality, service & value found in the Steel distribution industry. Vishal Tube as a specialist in ASTM A182 Alloy Steel Flanges with an Experience in India.
- What is Alloy Steel Flanges?
- Alloy Steel Flanges Specification

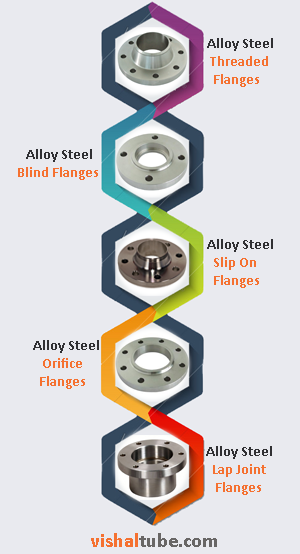

- Alloy Steel Flanges Available Types
- Alloy Steel Threaded Flanges Price In India
- Alloy Steel Socket Weld Flanges Price In India
- Alloy Steel Blind Flanges Price In India
- Alloy Steel Slip On Flanges Price In India
- Alloy Steel Weld Neck Flanges Price In India
- Alloy Steel Spacer Flanges Price In India
- Alloy Steel Screwed Flanges Price In India
- Alloy Steel Lap Joint Flanges Price In India
- Alloy Steel Long Weld Neck Flanges Price In India
- Alloy Steel Spectacle Blind Flanges Price In India
- Alloy Steel Anchor Flanges Price In India
- Alloy Steel Plate Flanges Price In India
- Alloy Steel Conflat Flanges Price In India
- Alloy Steel Ring Type Joint Flanges Price In India
- Alloy Steel Blank Flanges Price In India
- Alloy Steel Tongue & Groove Flanges Price In India
- Alloy Steel Flanges with Tube Price In India
- Alloy Steel Girth Flanges Price In India
- Alloy Steel Reducing Flanges Price In India
- Alloy Steel Figure 8 Flanges Price In India
- Alloy Steel Orifice Flanges Price In India
- Alloy Steel Swivel Flanges Price In India
- Alloy Steel Rotable Flanges Price In India
- Alloy Steel Welding Flanges Rotable Price In India
- Alloy Steel Square Flanges Price In India
- Alloy Steel Spade Flanges Price In India
- Alloy Steel ANSI 150 Flanges Price In India
- Alloy Steel Flanges Dimensions
- Alloy Steel F1 Flanges Packaging & Shipping
- Alloy Steel Flanges Chemical Properties
- Alloy Steel Flanges Mechanical Properties
- Available Stock of Alloy Steel Flanges In India
- Best Price of Alloy Steel Flanges In India
- Alloy Steel Flanges Inventory In India
ASTM A182 Alloy Steel Flanges Specification
Specifications : ASTM A182 / ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ to 36″
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
ANSI B16.5 ASTM A182 Alloy Steel Forged Flanges / ASME B16.5 AS Forged Flanges
Nominal Pipe Size |
Flanges Inside Diameter (ID) (inch) |
Flanges Outside Diameter (OD) (inches) |
||||
|---|---|---|---|---|---|---|
Class 150 |
Class 300 |
Class 400 |
Class 600 |
Class 900 |
||
1/2 |
0.84 |
1.875 |
2.125 |
2.125 |
2.125 |
2.50 |
3/4 |
1.06 |
2.25 |
2.625 |
2.625 |
2.625 |
2.75 |
1 |
1.31 |
2.625 |
2.875 |
2.875 |
2.875 |
3.125 |
1 1/4 |
1.66 |
3 |
3.25 |
3.25 |
3.25 |
3.50 |
1 1/2 |
1.91 |
3.375 |
3.75 |
3.75 |
3.75 |
3.875 |
2 |
2.38 |
4.125 |
4.375 |
4.375 |
4.375 |
5.625 |
2 1/2 |
2.88 |
4.875 |
5.125 |
5.125 |
5.125 |
6.50 |
3 |
3.50 |
5.375 |
5.875 |
5.875 |
5.875 |
6.625 |
4 |
4.50 |
6.875 |
7.125 |
7.00 |
7.625 |
8.125 |
5 |
5.56 |
7.75 |
8.50 |
8.375 |
9.50 |
9.75 |
6 |
6.62 |
8.75 |
9.875 |
9.75 |
10.50 |
11.375 |
8 |
8.62 |
11 |
12.125 |
12.00 |
12.625 |
14.125 |
10 |
10.75 |
13.375 |
14.25 |
14.125 |
15.75 |
17.125 |
12 |
12.75 |
16.125 |
16.625 |
16.50 |
18.00 |
19.625 |
ASTM A182 Gr Flanges Packing: As a leading manufacturer of ASTM A182 Alloy Steel Flanges we focus on every procedure to assure quality, the package we usually take is pack SA182 Grade Alloy Steel Flanges with environmental poly bags, and then in free fumigation wooden cases or wooden palate. Also can accept customized package.
Vishal Tube offers just about everything to meet your ASTM A182 Gr Flanges pack requirements. The Alloy Steel Flanges are packed in wooden corrugated boxes foiled in plastic wraps and bubble wraps.
Chemical Properties
| ELEMENT & PROPERTIES | LOW ALLOY STEEL | MEDIUM ALLOY STEEL | ||
|---|---|---|---|---|
| F11 CL2 | F22 CL3 | F5 | F9 | |
| CARBON | 0.10-0.20 | 0.05-0.15 | 0.15 MAX | 0.15 MAX |
| MANGANESE | 0.30-0.80 | 0.30-0.60 | 0.30-0.60 | 0.30-0.60 |
| PHOSPHORUS MAX | 0.040 | 0.040 | 0.03 | 0.030 |
| SULFUR MAX | 0.040 | 0.040 | 0.03 | 0.030 |
| SILICON | 0.50-1.00 | 0.50 MAX | 0.50 MAX | 0.50-1.00 |
| NICKEL MAX | – | – | 0.50 | – |
| CHROMIUM | 1.00-1.50 | 2.00-2.50 | 4.00-6.00 | 8.0-10.0 |
| MOLYBDENUM | 0.44-0.65 | 0.87-1.13 | 0.44-0.65 | 0.90-1.10 |
| OPPER MA | – | – | – | – |
| COLUMBIUM MAX | – | – | – | – |
| VANDIUM MAX | – | – | – | – |
| TENSILE STRENGTH PSI (MPA) | 70,000 (485) | 75,000 (515) | 70,000 (485) | 85,000 (585) |
| YIELD STRENGTH PSI MIN | 40,000 (275) | 45,000 (310) | 40,000 (275) | 55,000 (380) |
| ELONGATION 2” % MIN | 20 | 20 | 20 | 20 |
| REDUCTION AREA % MIN | 30 | 30 | 35 | 40 |
| HARDNESS (HB) MAX* | 143 ~ 207 | 156 ~ 207 | 143 ~ 217 | 179 ~ 217 |
Mechanical Composition
Density |
7.92 |
|---|---|
Melting Range,℃ |
1450 |
Elongation % |
40 |
Tensile Strength (Mpa) |
515 |
Yield Strength (Mpa) |
205 |
Hardness (Brinell) |
217 |
Available Stock of ASTM A182 Alloy Steel Flanges In India
Alloy Steel Flat Flanges Manufacturer In India
- ASTM A182 Class 150 Alloy Steel Flat Flanges
- ASTM A182 Class 300 Alloy Steel Flat Flanges
- ASTM A182 Class 600 Alloy Steel Flat Flanges
- ASTM A182 Class 900 Alloy Steel Flat Flanges
- ASTM A182 Class 1500 Alloy Steel Flat Flanges
- ASTM A182 Class 2500 Alloy Steel Flat Flanges
Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size: 1/2" to 36"
Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
ASTM A182 Alloy Steel Flat Flanges Manufacturer in India
Alloy Steel Blind Flanges Supplier In India
- ASTM A182 Class 150 Alloy Steel Blind Flanges
- ASTM A182 Class 300 Alloy Steel Blind Flanges
- ASTM A182 Class 600 Alloy Steel Blind Flanges
- ASTM A182 Class 900 Alloy Steel Blind Flanges
- ASTM A182 Class 1500 Alloy Steel Blind Flanges
- ASTM A182 Class 2500 Alloy Steel Blind Flanges
Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size: 1/2" to 36"
Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
ASTM A182 Alloy Steel Blind Flanges Manufacturer in India
Alloy Steel Slip On Flanges Exporter In India
- ASTM A182 Class 150 Alloy Steel Slip On Flanges
- ASTM A182 Class 300 Alloy Steel Slip On Flanges
- ASTM A182 Class 600 Alloy Steel Slip On Flanges
- ASTM A182 Class 900 Alloy Steel Slip On Flanges
- ASTM A182 Class 1500 Alloy Steel Slip On Flanges
- ASTM A182 Class 2500 Alloy Steel Slip On Flanges
Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size: 1/2" to 36"
Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
ASTM A182 Alloy Steel Slip On Flanges Manufacturer in India
Alloy Steel Socket Weld Flanges Distributor In India
- ASTM A182 Class 150 Alloy Steel Socket Weld Flanges
- ASTM A182 Class 300 Alloy Steel Socket Weld Flanges
- ASTM A182 Class 600 Alloy Steel Socket Weld Flanges
- ASTM A182 Class 900 Alloy Steel Socket Weld Flanges
- ASTM A182 Class 1500 Alloy Steel Socket Weld Flanges
- ASTM A182 Class 2500 Alloy Steel Socket Weld Flanges
Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size: 1/2" to 36"
Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
ASTM A182 Alloy Steel Socket Weld Flanges Manufacturer in India
Alloy Steel Threaded Flanges Stockholder In India
- ASTM A182 Class 150 Alloy Steel Threaded Flanges
- ASTM A182 Class 300 Alloy Steel Threaded Flanges
- ASTM A182 Class 600 Alloy Steel Threaded Flanges
- ASTM A182 Class 900 Alloy Steel Threaded Flanges
- ASTM A182 Class 1500 Alloy Steel Threaded Flanges
- ASTM A182 Class 2500 Alloy Steel Threaded Flanges
Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size: 1/2" to 36"
Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
ASTM A182 Alloy Steel Threaded Flanges Manufacturer in India
Alloy Steel Forged Flanges Trader In India
- ASTM A182 Class 150 Alloy Steel Forged Flanges
- ASTM A182 Class 300 Alloy Steel Forged Flanges
- ASTM A182 Class 600 Alloy Steel Forged Flanges
- ASTM A182 Class 900 Alloy Steel Forged Flanges
- ASTM A182 Class 1500 Alloy Steel Forged Flanges
- ASTM A182 Class 2500 Alloy Steel Forged Flanges
Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size: 1/2" to 36"
Dimensions: ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
ASTM A182 Alloy Steel Forged Flanges Manufacturer in India
|
|
|
